In order to make the coating film have better repeatability and proofing effect, Tengrui Zhike provides a variety of flat film making platforms.

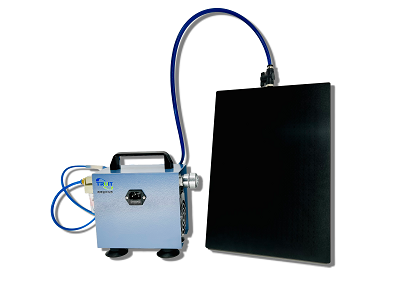

1. Vacuum coating table
The vacuum coating table adopts the principle of vacuum adsorption, and the substrate is smoothly adsorbed on the vacuum coating table for various film making
The working surface is ground with ultra-high precision, and the surface is anodized. Equipped with a dedicated oil-free vacuum pump with adjustable vacuum switch
Material: high-grade aluminum alloy
Aperture: 1mm
Hole spacing: 18mm
Number of holes: 176
Vacuum pump voltage: 220V
Vacuum pump power: 150W
Vacuum plate dimensions: 360mmx250mm
Vacuum pump dimensions: 260mmx210mm

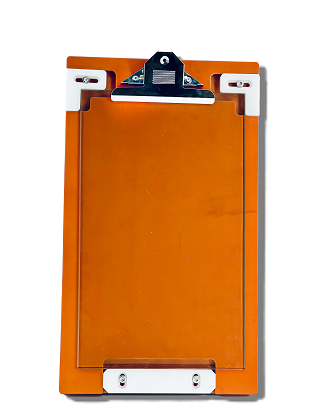

2. Bakelite coating table
Bakelite dimensions: 460mmx270mm, adjustable size: maximum 390mmx255mm, minimum 380mmx205mm, thickness 25mm, glass size: 230x380x6mm

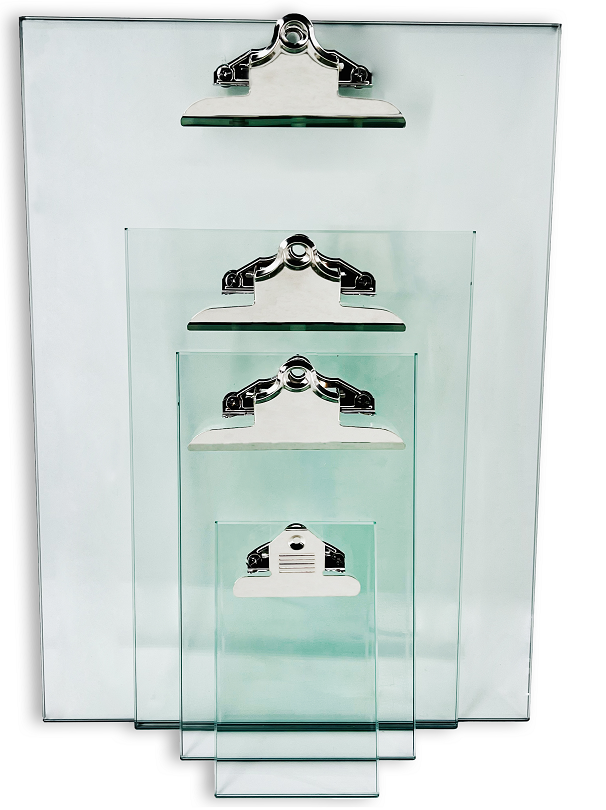

3. Glass coated plate
Please refer to the ordering information for various specifications
Model | Products | Specifications(mm) |
TR 3502/A4 | Vacuum Drawdown Plate | 360x250 |
TR 3501/A3 | Bakelite glass coating table | 460x270 |
TR 3501/1 | Glass Drawdown Plate | 145x110x8 |
TR 3501/2 | Glass Drawdown Plate | 235x160x8 |
TR 3501/3 | Glass Drawdown Plate | 335x230x8 |
TR 3501/4 | Glass Drawdown Plate | 440x180x8 |
TR 3501/5 | Glass Drawdown Plate | 440x350x8 |
